Açıklama
GD-CT-AP2247P

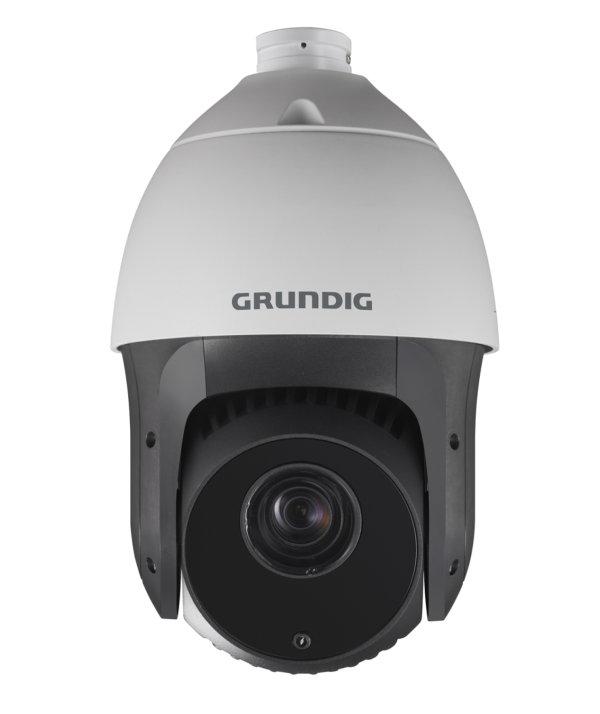

2 MP PTZ DOME TVI-CAMERA 23X ZOOM
| Alarm Input/Output |
2 inputs, 1 output (up to 12 VDC, 30 mA) , terminal block |
| Coaxial control |
Coaxitron®, CCVC |
| Col/B&W |
Auto , Color , B&W, IR-cut filter removable (ICR) |
| Digital Zoom |
16x |
| Dimensions |
185330mm (7.28 12.99 inch) |
| Frame Rate |
1080p@25fps, 1080p@30fps |
| Horizontal Viewing Angle |
48.8° (Wide) to 2.3° (Tele) |
| Humidity |
less than 90%, non condensing |
| Image Sensor |
2 Megapixel progressive scan CMOS |
| Iris F-Number |
F1.4 ~ F3.5 |
| Lens Drive Type |
Auto Iris (DC) |
| Lens Focal Length |
4 ~ 92 mm |
| Max. IR Distance |
Up to 150m |
| Number of Patrols |
8 patrols, up to 32 presets for each patrol |
| Number of Privacy Zones |
8 zones, polygonal |
| Operating Temperature |
-30 °C ~ +65 °C (-22 °F ~ 149 °F) |
| Optical Wavelength |
850 nm |
| Optical Zoom Ratio |
23x |
| OSD (On Screen Display) |
English |
| Pan Speed |
Manual: 0.1°/sec ~ 400°/sec, Preset: 400°/sec (max.) |
| Pixels – Effective |
1920 (H) x 1080 (V) |
| Power Consumption |
Max. 30 W |
| Presets |
256 |
| Protection Rating |
IP66 |
| Range Panning |
360° endless |
| Range Tilting |
-15° ~ 90° (auto flip) |
| Regulation |
CE, EAC, FCC, RoHS Compliant |
| S/N Ratio |
>50 dB |
| Sensitivity B/W |
0 Lux LED IR on |
| Sensitivity Colour |
0.05 Lux @ F1.4 |
| Shutter Speed |
1 ~ 1/10.000 sec |
| Supply Voltage |
24 VAC, 50, 60Hz |
| Surge Protection |
TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Tilt Speed |
Configurable from 0.1°/sec to 120°/sec, Preset Speed: 200°/sec |
| Video Outputs |
1x HD-TVI (BNC) , 1x Composite 1.0Vp-p 75 OHM (BNC) |
| Video Standard |
PAL, NTSC |
| Wide Dynamic Range |
Digital WDR |
| Weight |
4000 g (8.81lb) |
| White Balance |
Auto, Manual, Indoor, Outdoor, ATW |
| Image Enhancement |
BLC, 3D DNR |
| Park Action |
Preset , Patrol , Pattern , Pan scan , Tilt scan , Panorama scan |
